Installation Guide for OBDII.
Overview
We appreciate your interest in choosing Azuga as your fleet tracking partner. This document provides instructions for a new user on
• How to install OBD II into your vehicle.
• How to set up the device in the Azuga fleet applications.
Before installation, kindly note the device serial number (Printed on the device). You will need this information at a later time to set up your device in the Azuga App.
What’s in the box?

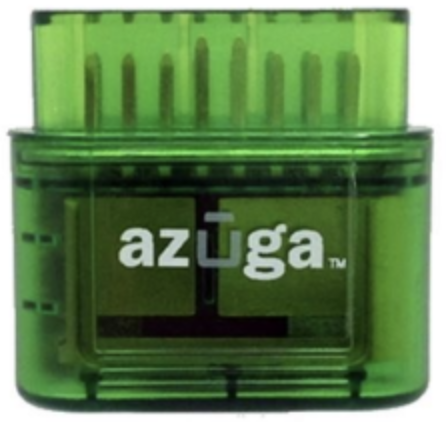

OBD II |
|

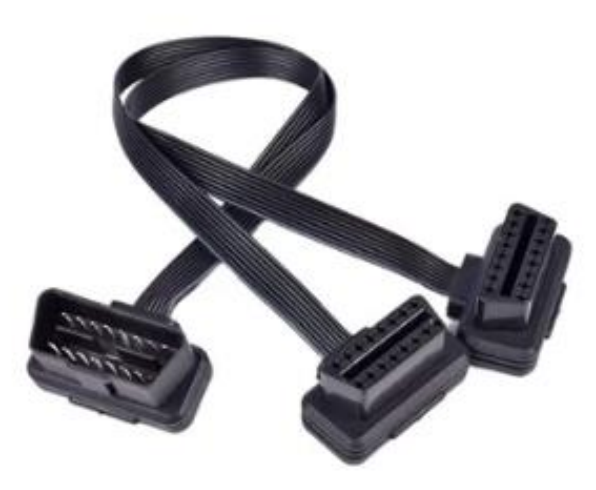

| OBD Y cable | Required when diagnostic port is occupied |

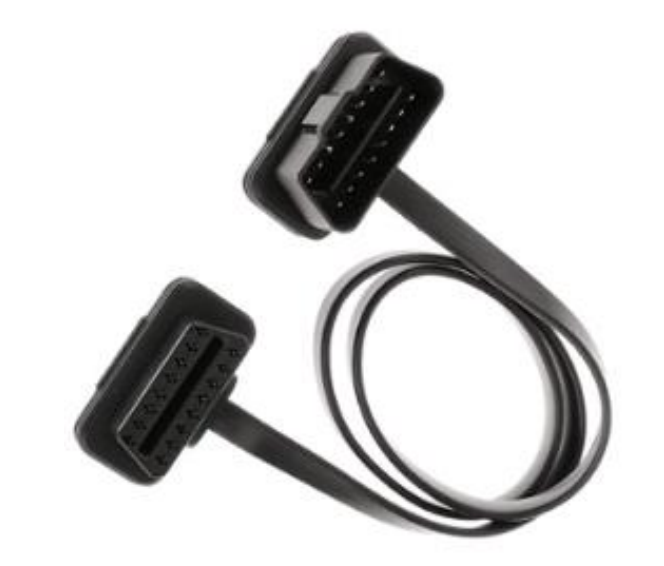

| Extension cable | Required when diagnostic port is covered by a panel/door |
Note: Hardware in the box may vary according to the customer’s requirements. |
Revision History
Date |
Revision |
Comment |
December 2021 |
Version 1 |
Initial Version |
Installation-OBD II
Based on the type of diagnostic port, the OBD II can be installed through any of the following
1. Port Exposed.
2. Port Occupied.
Port Exposed:

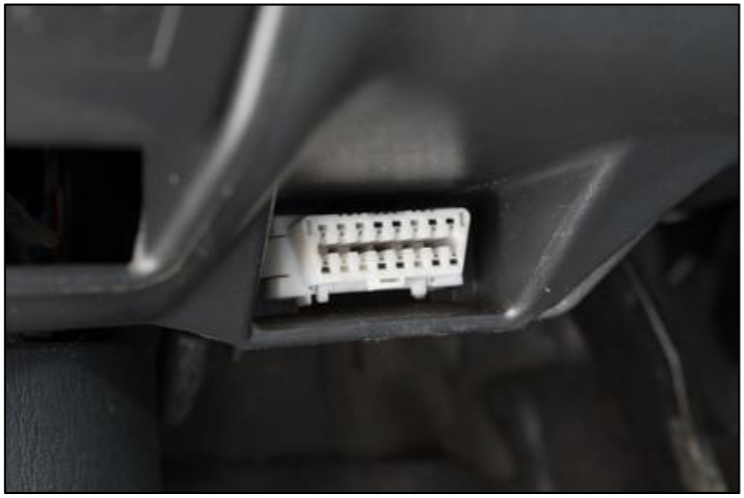

Locate the Vehicle’s diagnostic port, typically it can be found below the steering wheel. Follow the below steps to install OBD-II:
1. Switch off the vehicle or the unit on which the installation is performed.
2. Plugin the Azuga device into the diagnostic port if the port is exposed as shown in Fig:1.

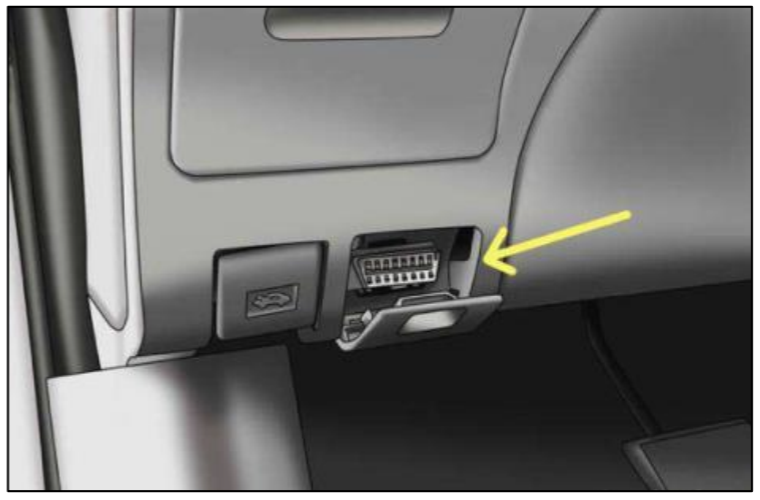

3. If the port is covered by a panel/door(Fig:2), use the extension cable to install the OBD device.
| Important: Ensure the OBD device is not protruding from the panel. |
4. Setup is initialized and power is received once the LEDs on the Azuga device start flashing.
5. Ensure the Green LED lasts for 5 seconds, which indicates the device is ready to use.
Note: If the Red LED blinks, the installation is failed, remove the device and repeat the same steps. For more information reach out to customercare@azuga.com |
Port Occupied:

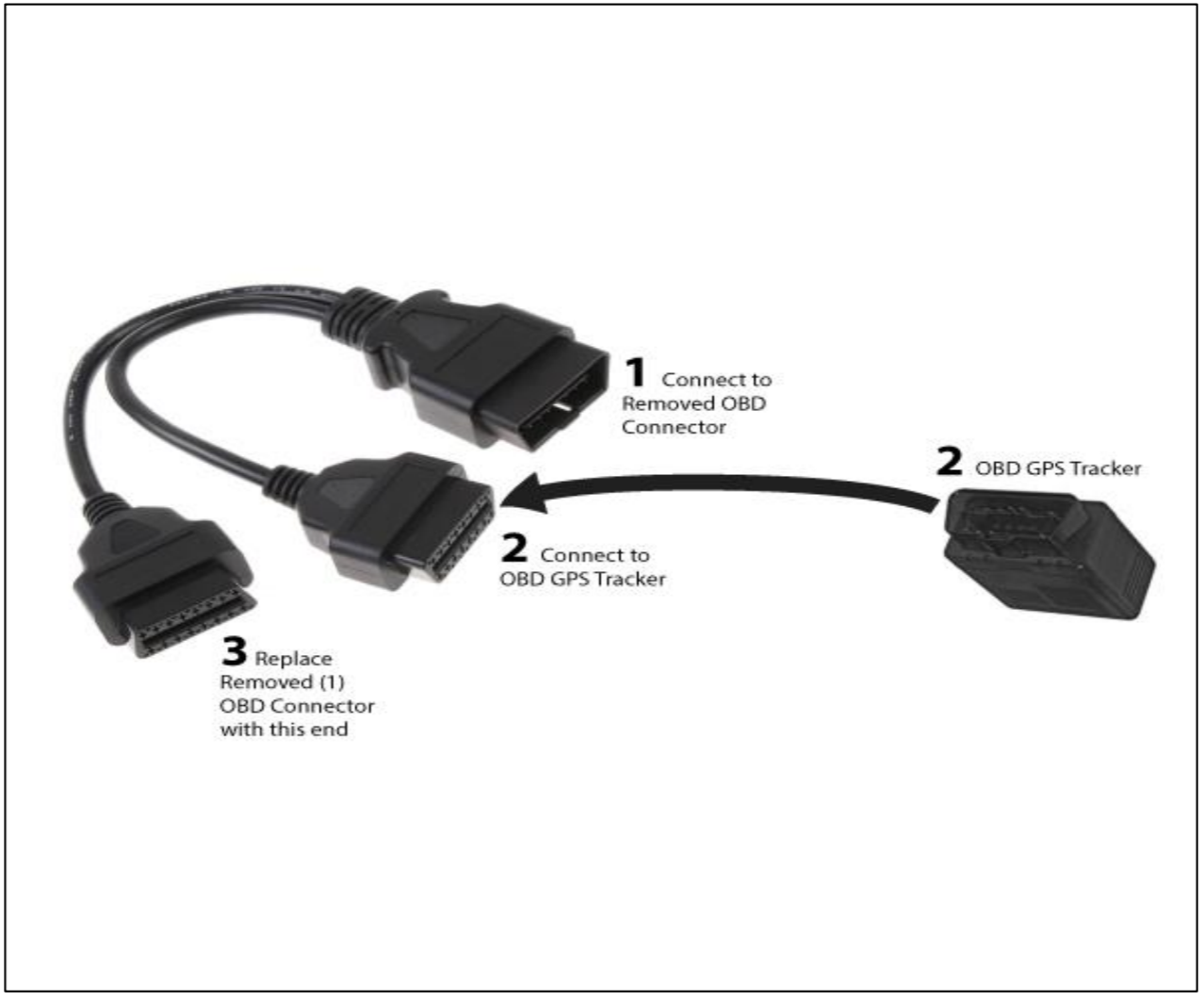

If the diagnostic port is already occupied with another device then, use the Y-cable to install the Azuga device.
1. Remove the other device from the diagnostic port.
2. Plugin the female end of the Y-cable into the Port.
3. Connect the Azuga device to one end of the Y cable.
4. Connect the removed device(Step-1) to the other end of the Y cable to complete the installation.
5. Ensure the Green LED on the Azuga device lasts for 5 seconds, which indicates the device is ready to use.
Note: If the Red LED blinks, the installation is failed, remove the device and repeat the same steps. For more information reach out to customercare@azuga.com |
Setup- Azuga Fleet Tracking
The installed OBD device needs to be set up for fleet tracking. Below are the 2 ways to set up the device
• Setup from Fleet Mobile App
• Setup from Fleet Web App
Important: If Login credentials are not yet received, reach out to customercare@azuga.com It is recommended to change the password when you log in for the first time. Refer FAQ section in the Azuga web application for more information. |
Azuga Fleet Mobile App
1. Login into Azuga Fleet Mobile App and navigate to
UTILITIES>>INSTALLATION.
| Note: If the Installation feature is not available Kindly reach out to customercare@azuga.com |

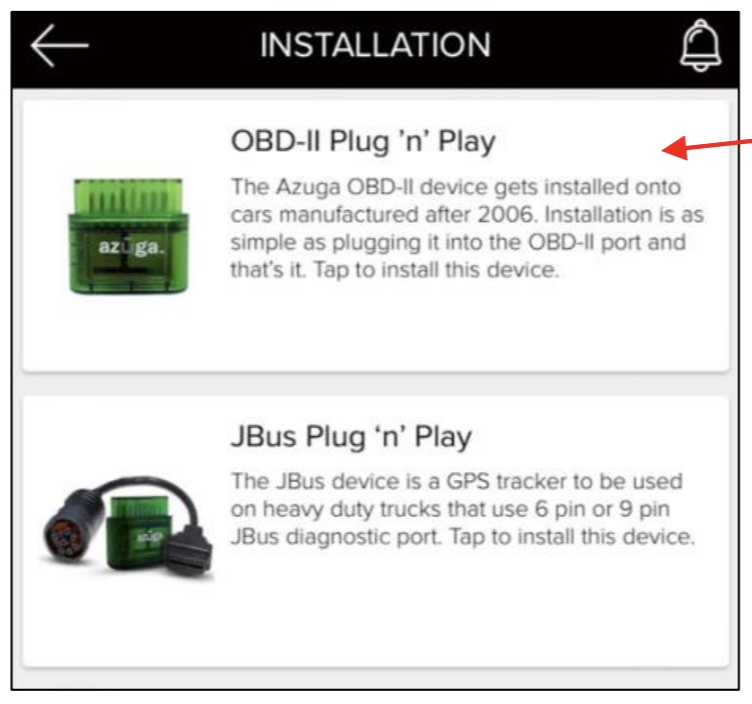

2. Tap Installation and Select the OBD-II Plug’n’Play option.

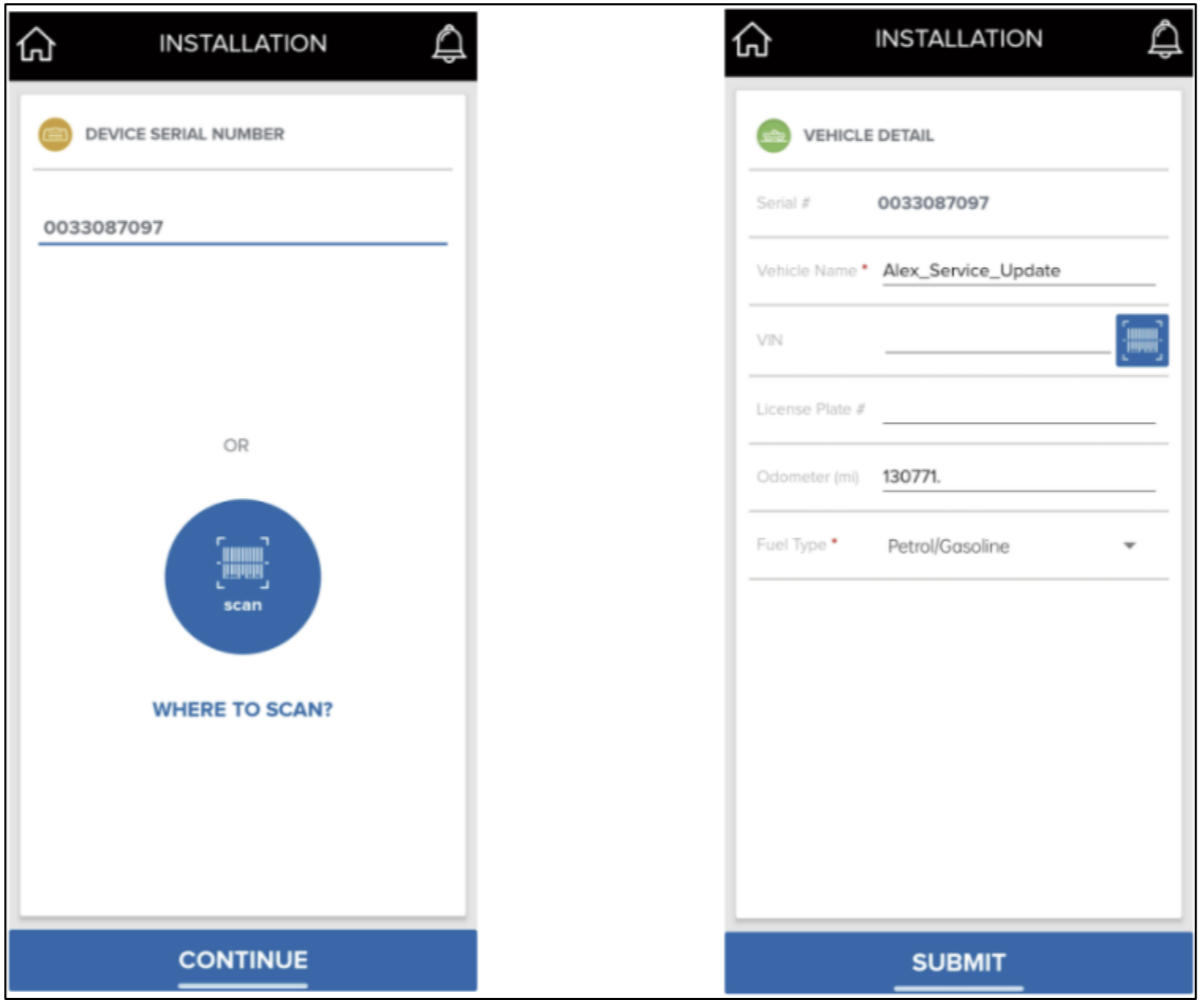

3. Device serial can be fed by any of the following methods
I. Tap the Where to Scan button and scan the barcode printed on the Azuga device.
II. Type the serial number manually.
4. Click the Continue button, verify the details shown and Click Submit. Azuga Fleet Web
1. Open Azuga Fleet Web Login and enter your Login Credentials.
2. Devices and vehicles are already created in the portal by Azuga. Vehicle names and device serial numbers are the same by default.
Note: Vehicles(created by default) can be renamed as per your requirements. |

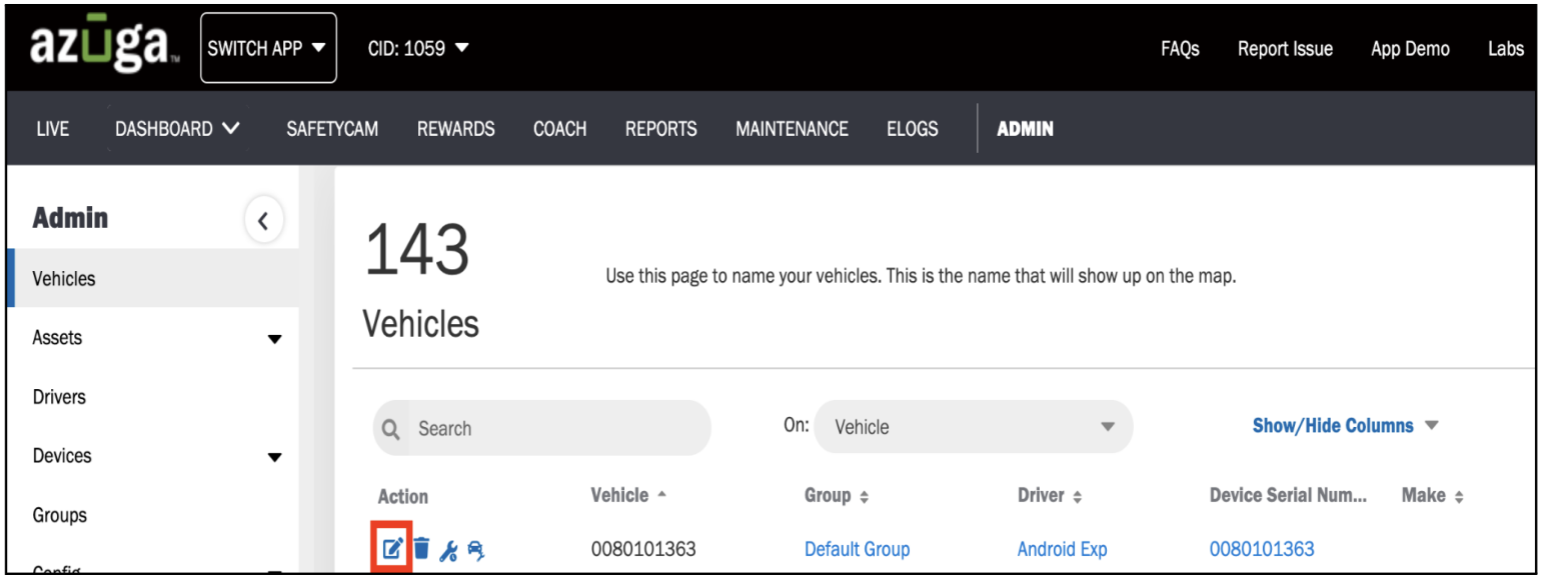

3. Click the ADMIN tab and select Vehicles.
4. Click the Pencil icon to edit/add/remove the details for the selected vehicle.
5. Fill in the mandatory(*) fields and click the Submit button.
Note: Repeat the steps for the remaining vehicles and ensure the vehicle names are unique. Reach out to customercare@azuga.com for additional support. |
