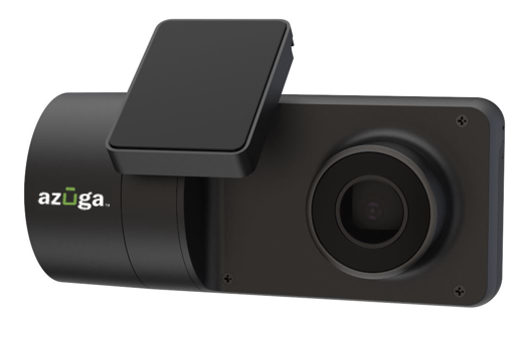

Azuga AI SafetyCam Technical Specifications
The following table describes the technical specifications of an AI SafetyCam:
| Element | Description |
| Network data | Global frequency bands |
| Micro-SD | 0.59" x 0.47" x 0.029" (15 x 12 x 0.76mm) |
| GPS | GPS + AGPS |
| Road-facing lens | 720P HD; wide-angle camera. Field of view (approx): Horizontal: 118° Diagonal: 147° |
| In-cabin lens | 720P HD with integrated IR and adjustable viewing angle. Field of view (approx): Horizontal: 113° Diagonal: 140° |
| Auxiliary cameras | Ability to connect up to three auxiliary cameras and WiFi |
Standby mode |
When connected to constant power, the AI safetycam enters standby mode when no movement is detected after a configured length of time. In standby mode the AI safetycam does not record information, but previously recorded videos can be pulled from the AI safetycam. |
| AI SafetyCam dimensions | 4.5" x 2.3" x 1.9" (115 x 60 x 50mm) |
| Weight | 5.3oz (150g) |
| Casing material | PC2805 |
Operating temperature |
Operating: 32°F to 131°F (0°C to 55°C) Note: In case the operating temperature is out of range, the AI safetycam will not start and will resume operation after reaching normal operating temperature Storage: 14°F to 185°F (-10°C to 85°C) |
| Protective cover | Protective cover over the SIM card and SD card slots, secured with a safety screw |
| Power | Hardwire kit is supplied with the AI safetycam for continuous power. Optional to connect through OBD-II power adapter cable |
| Power consumption | Active: 12V 225mA Standby: 12V 32mA |
| Storage/memory | 128GB SD card is supplied with the AI safetycam |
| Over the air (OTA) upgrade | Supported |
| Speaker | Built-in speaker for audible alerts |
| Event trigger button | Built-in button to capture an unusual event while driving |
| Processor | Qualcomm® Snapdragon™ Quadcore Processor |
PDF copy of the Technical Specifications for the Azuga AI SafetyCam:
Technical Specifications | Azuga AI SafetyCam.pdf
Last updated on April 23, 2024
